WHAT IS BRAKE PAD

Brake pads, which is also called disc brake pad, or car brake pad, are a component of disc brakes used in automotive and other applications. They are composed of steel backing plates with friction material bound to the surface that faces the disc brake rotors, which are the parts of a car's braking system that actually take the brunt of the frictional force necessary to stop the vehicle. In a disc brake system, the brake pedal activates a hydraulic line that squeezes calipers against the rotors of the car's tires. Brake pads are positioned between the calipers and the rotors to absorb the energy and heat, then provide enough grip to stop the vehicle.

Besides disc brake pads, there is another auto part that has the same function as the disc brake pad, which is called, the brake shoe, or drum brake shoe, installed with the drum brake. The advantages of disc brake pads are that, they offer better-stopping performance than drum brakes shoes, better resistance to “brake fade” and are easier to replace than drum brake lining.

There are different brake pads according to the materials used in the brake pads. They are semi-metallic brake pads, ceramic brake pads, low-metallic brake pads, and non-asbestos organic brake pads. Different types of brake pads have their own advantages and strong points. Take IFK Brakes as an example. IFK Ceramic Brake Pads are durable, delivering improved stopping power, reduced rotor wear, and low dust, making them the perfect choice for upgrading from conventional pads, mixed with imported phenol resin, ceramic fiber, copper, graphite, and the most awesome material-aramid fiber.

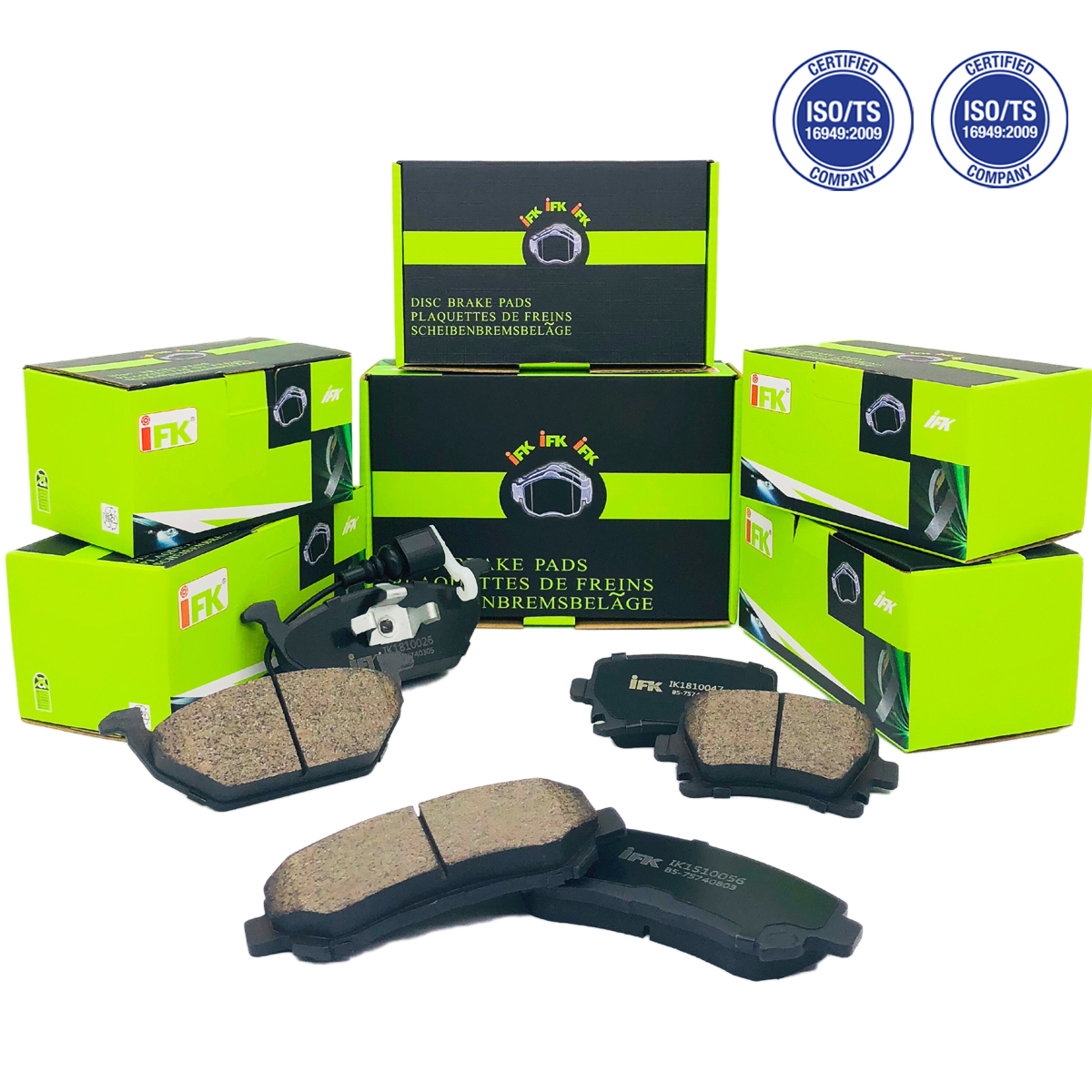

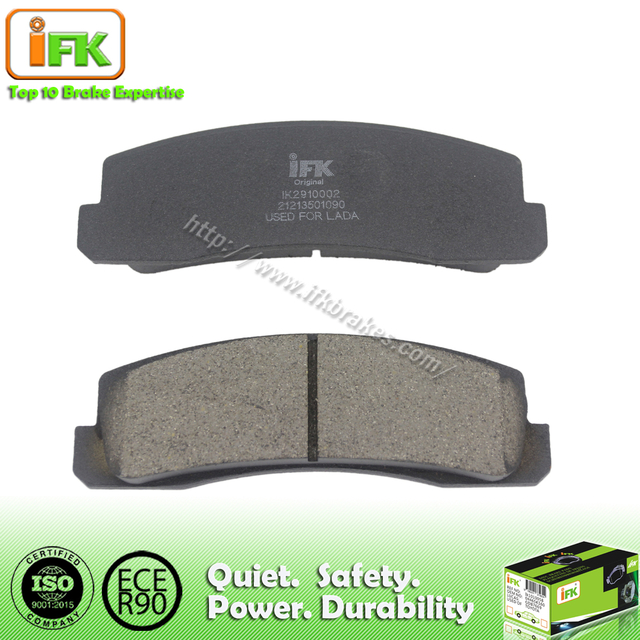

IFK brake pad
IFK brake pad

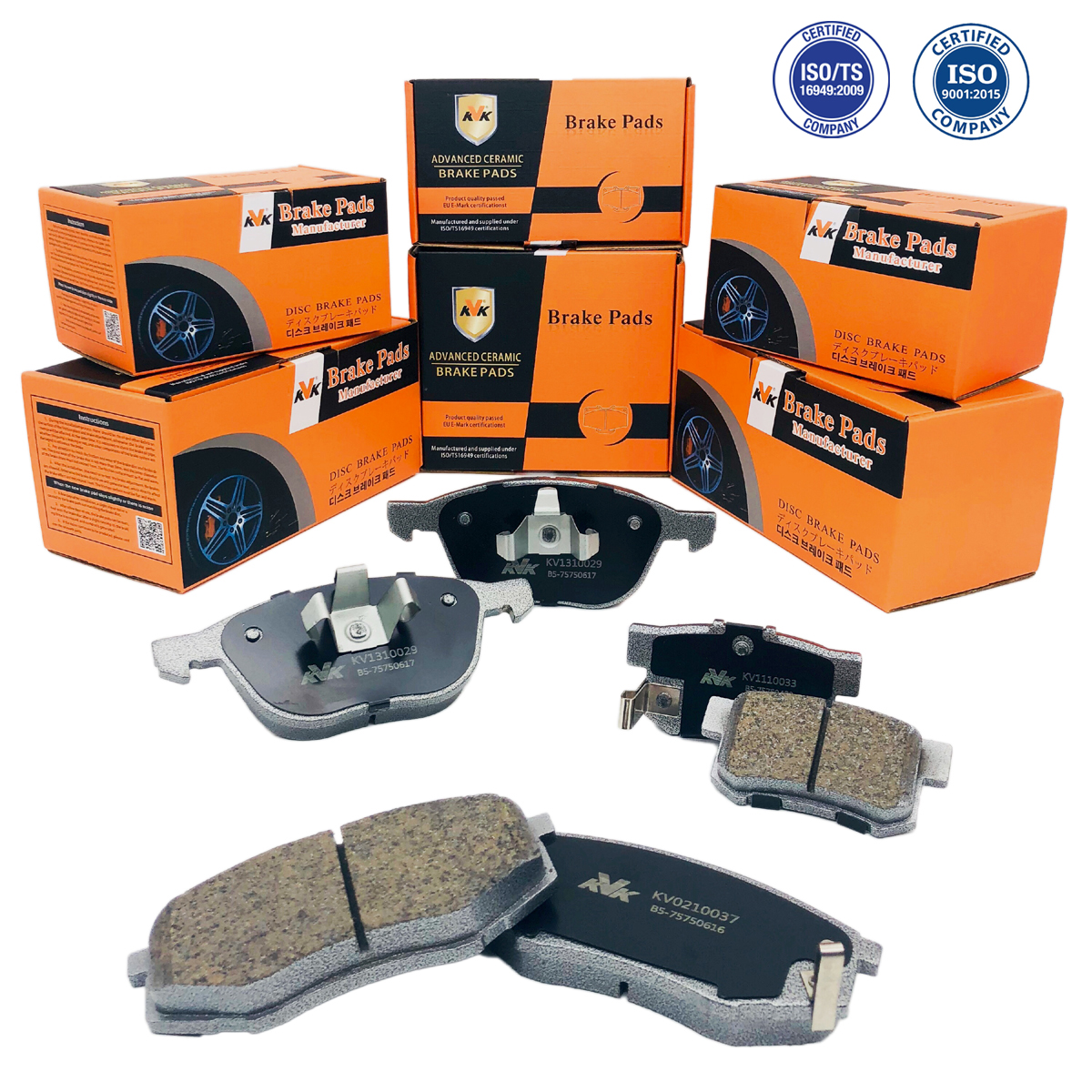

KVK brake pad
KVK brake pad

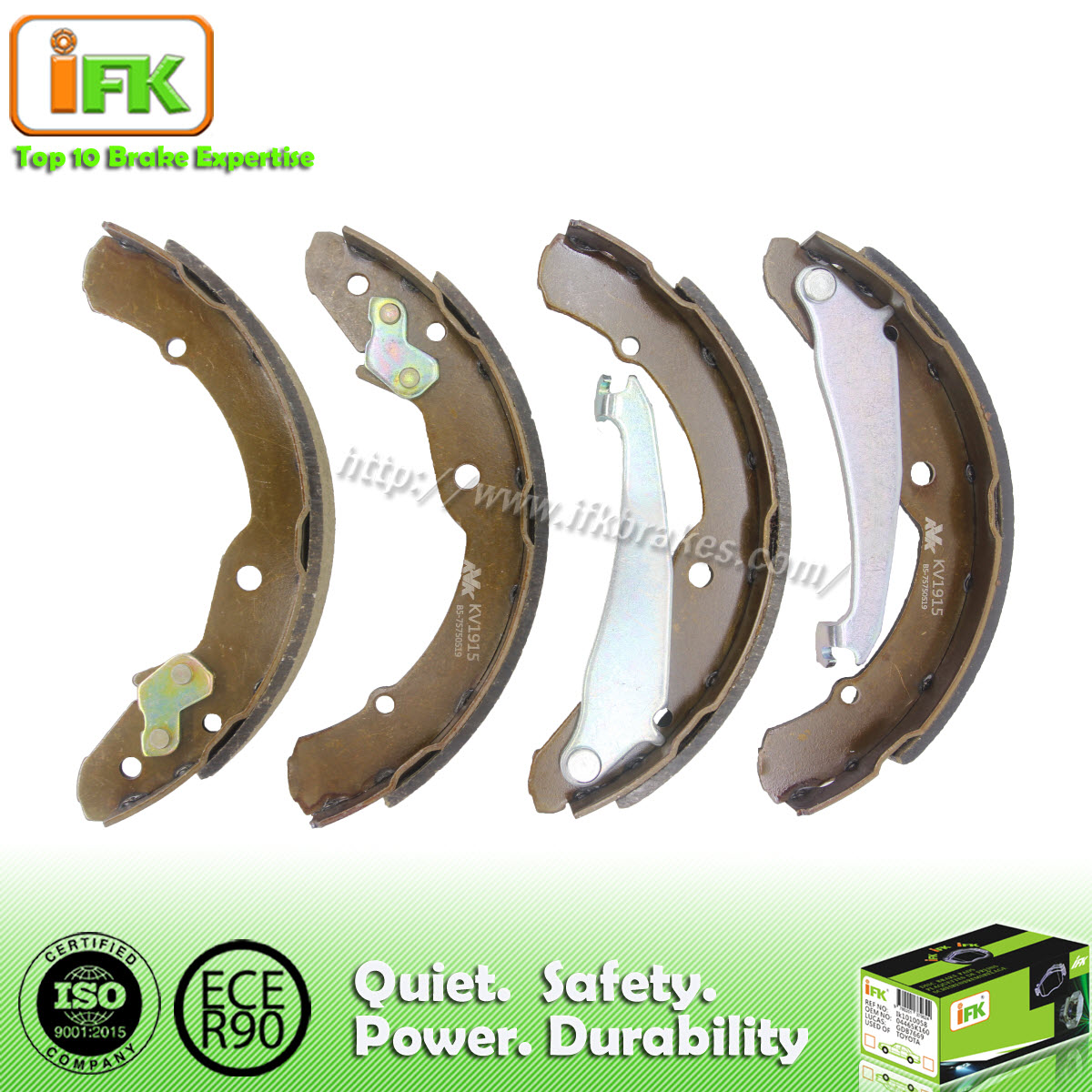

IFK1915-1
IFK1915-1

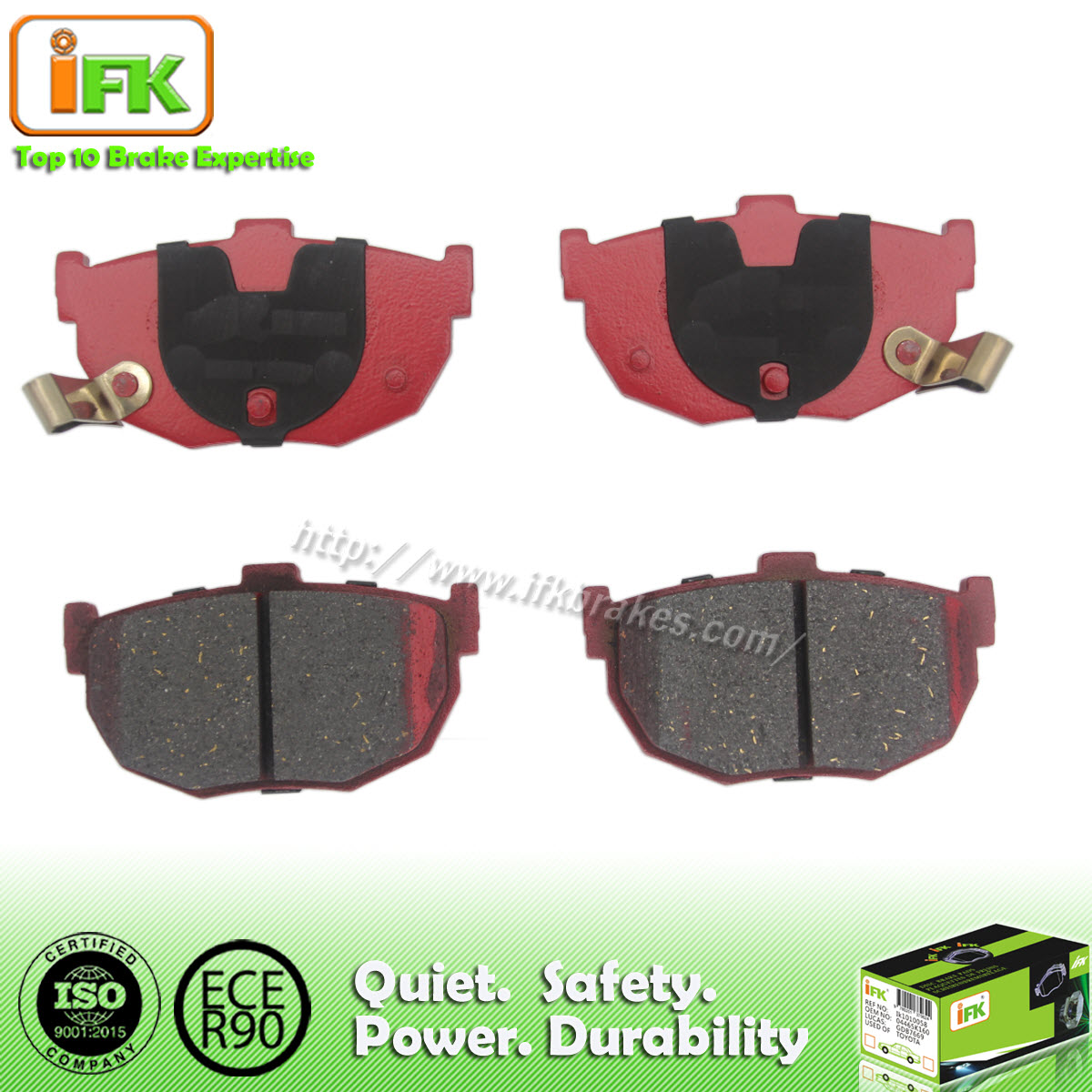

IK0410030-4
IK0410030-4
IFK1903-2
IFK1903-2

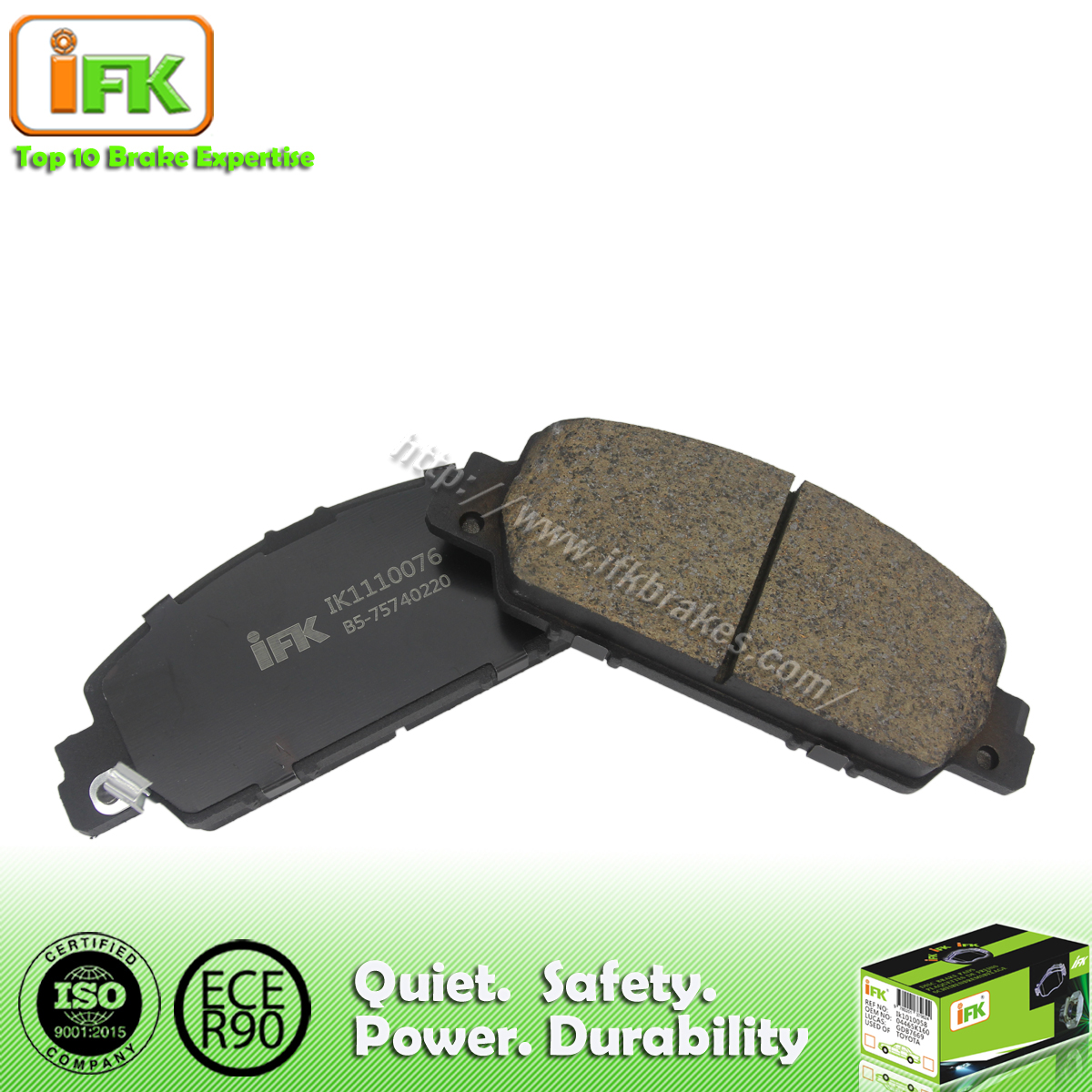

IK1110076-1
IK1110076-1

WHAT DOES A BRAKE PADS DO?

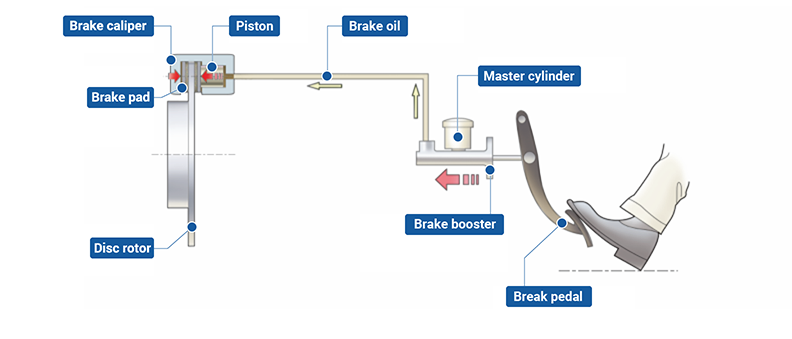

Brake pads, the parts of a car's braking system that actually take the brunt of the frictional force necessary to stop the vehicle. In a disc brake system, the brake pedal activates a hydraulic line that squeezes calipers against the rotors of the car's tires. Brake pads are positioned between the calipers and the rotors to absorb the energy and heat, then provide enough grip to stop the vehicle.

There are usually two brake pads per disc rotor, held in place and actuated by a caliper affixed to the wheel hub. Most brake pads are equipped with a method of alerting the driver when this needs to be done. A common technique is manufacturing a small central groove whose eventual disappearance by wear indicates the end of a pad's service life. Other methods include placing a thin strip of soft metal in a groove, such that when exposed (due to wear) the brakes squeal audibly. A soft metal wear tab can also be embedded in the pad material that closes an electric circuit when the brake pad wears thin, lighting a dashboard warning light.


TYPES OF BRAKE PADS

Ceramic Formula

  Greater consistent pedal feel
  Excellent heat dissipation and superior fade resistance
  Superior initial effectiveness with the less required break-in period
  Enhanced durability
  40,000 to 60,000 km lifetime
  Increased braking power in crucial braking situations
  Outstanding anti-dust capability for cleaner wheels and tires
  Decreased brake NVH (Noise, Vibration, and Harshness)

Low-metallic Formula

  Exceptional stopping power
  Ideal vehicle control and braking performance response
  30,000 to 50,000 km lifetime
  Exceptionally long brake pad and rotor life
  Economical and reliable
  Substantial reduction in dust
  Stable friction performance across the wide temperature range

NAO Formula

  Ultra-low rotor wear and less dusting for cleaner wheels
  40,000 to 50,000 km lifetime.
  Exceptionally high friction coefficient
  Reliable stopping power
  100% asbestos-free formula
  Organic, non-asbestos material

DIFFERENCE BETWEEN CERAMIC AND SEMI METALLIC BRAKE PADS

Ceramic Formula

IFK Ceramic Brake Pads provide superior breaking for all makes and models of vehicles. Our long-lasting ceramic brake pads are durable, delivering improved stopping power, reduced rotor wear, and Semi dust, making them the perfect choice for upgrading from conventional pads.

Engineered to reduce brake noise, our brake pads effectively eliminate noise, vibration, and harshness (NVH). IFK Ceramic Brake Pads’ innovative ceramic braking technology delivers ultra-quiet, smooth braking performance in a wide variety of driving situations and weather

  Greater consistent pedal feel
  Excellent heat dissipation and superior fade resistance
  Superior initial effectiveness with the less required break-in period
  Enhanced durability
  40,000 to 60,000 km lifetime
  Increased braking power in crucial braking situations
  Outstanding anti-dust capability for cleaner wheels and tires
  Decreased brake NVH (Noise, Vibration, and Harshness)


Semi-metallic Formula

IFK Semi-Metallic Brakes Pads are made from an organic formula combined with small amounts of metal that help with heat transfer to offer improved braking. They are good at dissipating heat and provide reliable braking and designed to keep wheels exceptionally clean and deliver first-rate stopping power in a shorter stopping range. Exceedingly rotor-friendly, these brake pads are ultra-quiet with no break-in required. Delivering the ultimate performance and the safest braking experience, our high-performance Semi-metallic brake pads are 100% asbestos free and made with first-rate brake friction material, providing optimal heat resistance for all kinds of driving conditions and weather.

  Exceptional stopping power
  Ideal vehicle control and braking performance response
  30,000 to 50,000 km lifetime
  Exceptionally long brake pad and rotor life
  Economical and reliable
  Substantial reduction in dust
  Stable friction performance across the wide temperature range


HOW CAN YOU TELL IF BRAKE PADS NEED REPLACING?

Brake pads need to be replaced in the following situations

  The brake wear sensors start to alarm
  The friction of brake pads is less than 3mm
  The brake pads have been eroded by brake fluid or oil
  The wear of the brake pads on both sides is uneven
  The wear of the front and the rear brake pads is uneven


ADVANTAGES OF OUR BRAKE PADS

62

01
Samples/drawings/models provided by the customer for further technical analysis
63

02

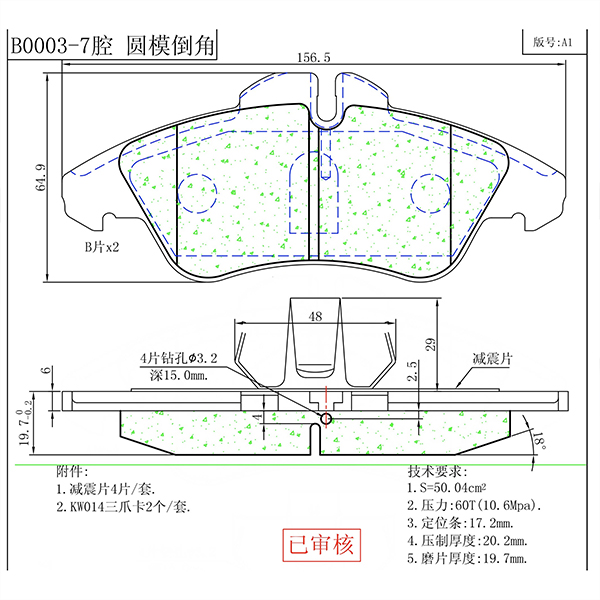

 Drawings for sample
production
64

03

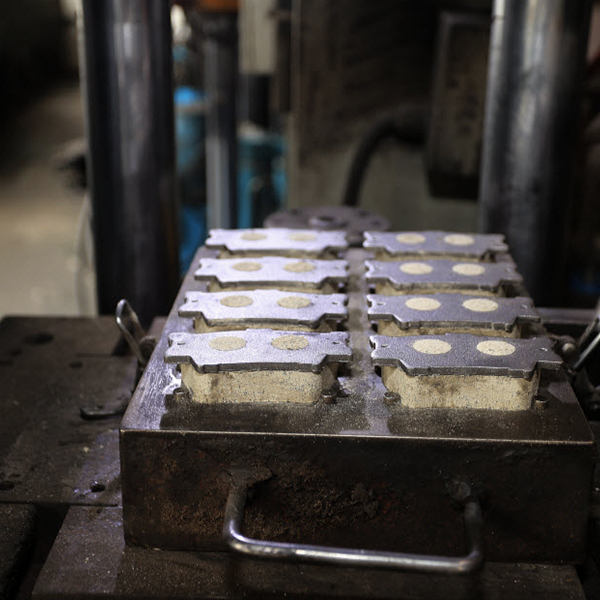

Samples produced and send to the customer for quality testing
65

04
Batch production after the
samples confirmed

RELATED PRODUCTS

  • Brand: IFK

    IFK Ref.: IK1310026

    Model: MAZDA 6(GG)1.8

    POS: Front Axel

    NO.: GJYB3323ZC/GDB3309/D1642

    SIZE: 131.5*56.0*17.0

    Quieter Braking

    Less Dust

    Good Heat Dissipation

    Reduced Rotor Wear

    Longer Pad Life

    0
    0
  • Brand: IFK

    IFK Ref.: IK0910017

    Model: DAEWOO LACETTI/NUBIRA

    POS: Front Axel

    NO.: 96405129/GDB3347

    SIZE: 142.8*51.5*17.8

    Quieter Braking

    Less Dust

    Good Heat Dissipation

    Reduced Rotor Wear

    Longer Pad Life

    0
    0
  • Brand: IFK

    IFK Ref.: IK0210038

    Model: HYUNDAI ACCENT IV/SOLARIS IV/VELOSTER/FLUENCE

    POS: Front Axel

    NO.: 581011RA00/GDB3548/D1593

    SIZE: 132.8*58.2*17.0

    Quieter Braking

    Less Dust

    Good Heat Dissipation

    Reduced Rotor Wear

    Longer Pad Life

    0
    0
  • Brand: IFK

    IFK Ref.: IK0210005

    Model: HYUNDAI  ELANTRA/MATRIX

    POS: Front Axel

    NO.: 581012DA40/GDB3378/D941

    SIZE: 137.0*63.5*18.2

    Quieter Braking

    Less Dust

    Good Heat Dissipation

    Reduced Rotor Wear

    Longer Pad Life

    0
    0
  • Brand: IFK

    IFK Ref.: IK0210039

    Model: KIA K5

    POS: Front Axel

    NO.: 581013QA10/GDB3540/D1444

    SIZE: 132.8*59.0*17.4

    Quieter Braking

    Less Dust

    Good Heat Dissipation

    Reduced Rotor Wear

    Longer Pad Life

    0
    0
  • Brand: IFK

    IFK Ref.: IK1010010

    Model: TOYOTA AVALON/CAMRY/PREVIA

    POS: Front Axel

    NO.: 0446533180/GDB3152/GDB3277/D707/D1227

    SIZE: 116.8*59.5*17.0

    Quieter Braking

    Less Dust

    Good Heat Dissipation

    Reduced Rotor Wear

    Longer Pad Life

    0
    0
  • Brand: IFK

    IFK Ref.: IK1510067

    Model: NISSAN NAVARA/ NP300/PATHFINDER

    POS: Front Axel

    NO.: 41060EB326/GDB3404/GDB7718/D1094

    SIZE: 163.7*54.2*16.7

    Quieter Braking

    Less Dust

    Good Heat Dissipation

    Reduced Rotor Wear

    Longer Pad Life

    0
    0
  • Brand: IFK

    IFK Ref.: IK1410060

    Model: MITSUBISHI Canter FB7/Canter FB8

    POS: Front Axel

    NO.: MK449107/GDB7243/D6113

    SIZE: 123*56.5*17.5

    Quieter Braking

    Less Dust

    Good Heat Dissipation

    Reduced Rotor Wear

    Longer Pad Life

    0
    0
  • Brand: IFK

    IFK Ref.: IK1410025

    Model: MITSUBISHI   L200

    POS: Front Axel

    NO.: 4605A198/GDB3435/D1519

    SIZE: 155.4*51.0*16.0

    Quieter Braking

    Less Dust

    Good Heat Dissipation

    Reduced Rotor Wear

    Longer Pad Life

    0
    0
  • Brand: IFK

    IFK Ref.: IK1310030

    Model: MAZDA 3(BK12)/5(CR19)/3(BK14)

    POS: Rear Axel

    NO.: BPYK2648ZB/GDB1621/D1095

    SIZE: 123.1*52.0*16.6

    Quieter Braking

    Less Dust

    Good Heat Dissipation

    Reduced Rotor Wear

    Longer Pad Life

    0
    0
  • Brand: IFK

    IFK Ref.: IK1310025

    Model: MAZDA 626(GE)/ MX-6(GE6)/XEDOS 6(CA)

    POS: Front Axel

    NO.: G5Y63323Z/GDB1139/D637

    SIZE: 131.7*51.5*15.5

    Quieter Braking

    Less Dust

    Good Heat Dissipation

    Reduced Rotor Wear

    Longer Pad Life

    0
    0
  • Brand: IFK

    IFK Ref.: IK2710038

    Model: CHEVROLET TRAX/VOLT

    POS: Rear Axel

    NO.: 13300867/GDB1844/D1468

    SIZE: 116.6*42.7*16.3

    Quieter Braking

    Less Dust

    Good Heat Dissipation

    Reduced Rotor Wear

    Longer Pad Life

    0
    0
  • Brand: IFK

    IFK Ref.: IK2310021

    Model: ALFA ROMEO 145(930)/146(930)/156(932)/GTV(916C_)

    POS: Front Axel

    NO.: 9950637/GDB1212/GDB1338

    SIZE: 155.1*61.8*19.0/156.4*58.9*19.0

    Quieter Braking

    Less Dust

    Good Heat Dissipation

    Reduced Rotor Wear

    Longer Pad Life

    0
    0
  • Brand: IFK

    IFK Ref.: IK2110025

    Model: OPEL ASTRA G(F70)

    POS: Rear Axel

    NO.: 1605995/GDB1515    /D1362

    SIZE: 95.4*42.7*15.0

    Quieter Braking

    Less Dust

    Good Heat Dissipation

    Reduced Rotor Wear

    Longer Pad Life

    0
    0
  • Brand: IFK

    IFK Ref.: IK2110022

    Model: OPEL CAMPO

    POS: Front Axel

    NO.: 1605081/GDB1570/D1176

    SIZE: 131.4*55.6*17.0/131.4*51.6*17.0

    Quieter Braking

    Less Dust

    Good Heat Dissipation

    Reduced Rotor Wear

    Longer Pad Life

    0
    0
  • Brand: IFK

    IFK Ref.: IK1910048

    Model: VW C(358)/PASSAT(3C2)/SHARAN(7N)/TIGUAN(5N_)

    POS: Rear Axel

    NO.: 5N0698451/GDB1763   /D1348

    SIZE: 105.5*56.4*17.0

    Quieter Braking

    Less Dust

    Good Heat Dissipation

    Reduced Rotor Wear

    Longer Pad Life

    0
    0
  • Brand: IFK

    IFK Ref.: IK1910030

    Model: VW TRANSPORTER(70XA) 1990-2003

    POS: Front Axel

    NO.: 7D0698151B/GDB1367/D852

    SIZE: 129.7*65.3*19.0

    Quieter Braking

    Less Dust

    Good Heat Dissipation

    Reduced Rotor Wear

    Longer Pad Life

    0
    0
  • Brand: IFK

    IFK Ref.: IK1810041

    Model: AUDI A1(8X1,8XF) 2010-

    POS: Front Axel

    NO.: 1K0698151/GDB1550/D1107/D1319

    SIZE: 155.2*66.0*20.3/156.3*71.3*20.3

    Quieter Braking

    Less Dust

    Good Heat Dissipation

    Reduced Rotor Wear

    Longer Pad Life

    0
    0
  • Brand: IFK

    IFK Ref.: IK3210017

    Model: ISUZU N-SERIE

    POS: Front Axel

    NO.: 8971686330/GDB7233/D825/D1732

    SIZE: 206.3*75.0*20.0

    Quieter Braking

    Less Dust

    Good Heat Dissipation

    Reduced Rotor Wear

    Longer Pad Life

    0
    0
  • Brand: IFK

    IFK Ref.: IK3210014

    Model: ISUZU COMMERCIAL/ N-SERIE

    POS: Front Axel

    NO.: 8971686340/GDB7252/D826

    SIZE: 206.1*80.1*20.0

    Quieter Braking

    Less Dust

    Good Heat Dissipation

    Reduced Rotor Wear

    Longer Pad Life

    0
    0
